Description

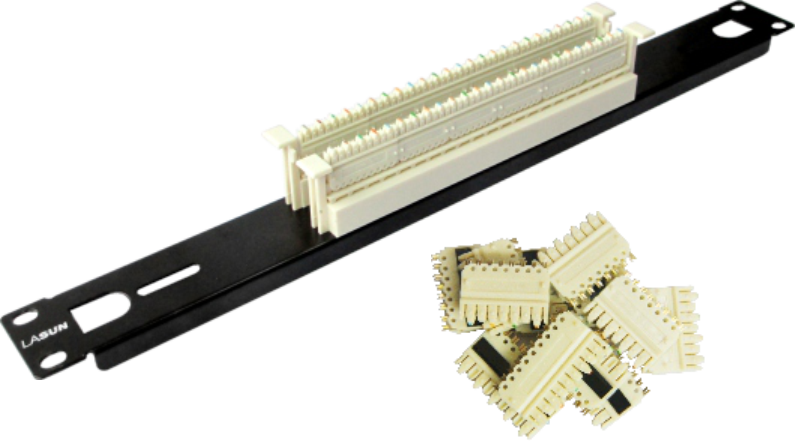

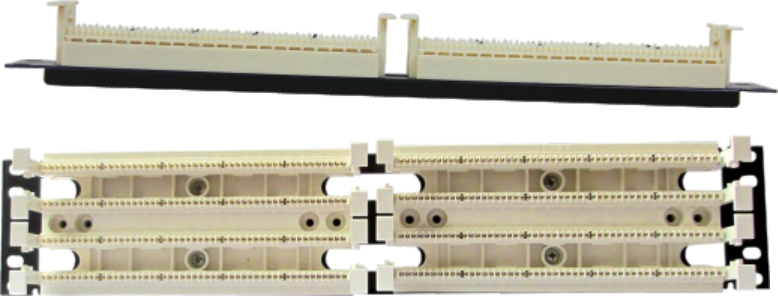

The LASUN 110 patch panel is used in the wiring closet of subsystem, to achieve the vertical distribution of voice and connection of voice terminal equipment.

IDC technology design, the upper and lower two rows of cables are in the front  termination, beyond the ANSI / TIA / EIA-568-B performance, in line with network application performance.

Features

1.Standard 19 "cabinet type;
2.Plastic use PC flame retardant UL-94V-0 material;
3.Backplane use quality cold-rolled steel, anti- static spraying treatment;
4.Full match connection block, equipped with backplane and label;
5.50 pairs, 100 pairs, 200 pairs of choice;
6.For 23-26AWG cable specifications, in line with ISO / IEC11801 standard.

Parameters

Insertion life: 1000 times
10% to 90% RH
Applicable wire gauge: 22 ~ 24
Rated temperature: -20 ~ 70 ℃

Packing / Material

Quantity

Size

Inner packing - box

1 set/box

500X200X60MM

Outer packing - carton

8 boxes/carton
