Description

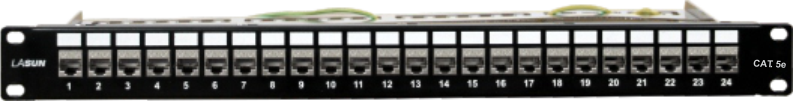

LASUN shield patch panel is suitable for Equipment room or wiring closet of sub-system, to achieve network horizontal allocation or interruption of equipment connections. Connect the horizontal shielded network cable through the back module, and connect the jumper to the network switching device through the front RJ45 socket. Compliant with ANSI / TIA-568-C.2 channel specification.

Features

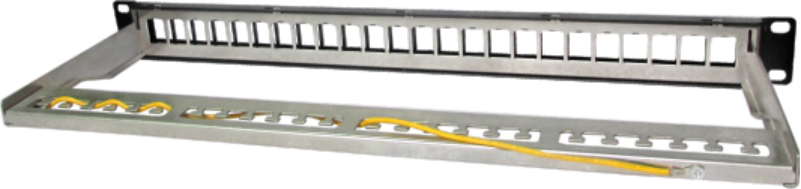

1.All-metal accessories, the bracket comes with grounding cable, to maximize the grounding capacity, which can effectively protect electromagnetic interference and radio frequency interference, and provide excellent alien crosstalk suppression;
2.Full working area with universal shielding module, easy disassembly, tool-free termination;
3.With silkprint port, which is convenient for construction and future maintenance management;
4.Support kinds of shielded and non-shielded modules free transfer.

Parameters

Insertion life: 1000 times

Humidity: 10% to 90% RH

Applicable wire gauge: 22 ~ 24

-20~70℃  Rated temperature: -20 ~ 70 ℃

Packing / Material

Quantity

Size

Inner packing - box

1 set/box

500X200X65MM

Outer packing - carton

8 boxes/carton

520X300X434MM
