Product Description: U/UTP Cat6A

Rate Temperature: 60℃,75℃,90℃

Reference Standard: ANSI/TIA-568 -B.2

Flame Test:CMG, CM, CMR

Installation Temperature:-20~+75℃

Application:

100 Base-TX

100 Base-T

100VG-AnyLAN

1000 Base-T(Gigabit Ethernet)

1000 Base-TX

Data Sheet

General

U/UTP Cat 6A 4P

Test

Standard

ISO/IEC11801, TIA-568-C.2

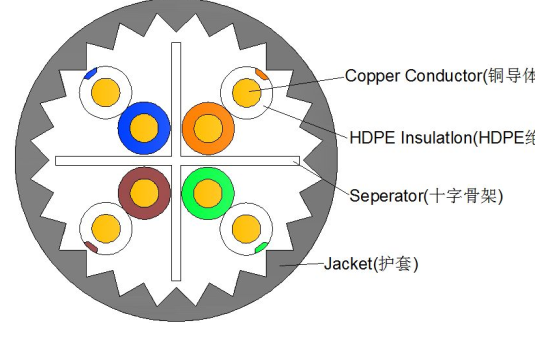

Conductor

Material

Solid-Bare Copper

O.D(mm)

0.57±0.008

Insulation

Material

HDPE

O.D(mm)

1.07±0.05/1.05±0.05

Pairs

1

White-Blue/Blue

2

White-Orange/Orange

3

White-Green/Green

Electrical

Characteristics

1--500MHZ Impedance 100±15Ω

4

White-Brown/Brown

Delay Shew(ns/100m) ≤ 45/100m

Seperator

Material

S

PE

4.6*4.6mm

Tensile Strength       110N

Size

Capacitance ≤ 5.6nF/100m

 Rip Cord

Material

Size

Nylon

250D*3

Conductor Resistance: ≤65.8Ω/kmat 20℃

Insulation Resistance: ≥5000

MOhm.km at 20℃

Sheath

Thickness

0.60±0.05 mm

Sheath Physical

Properties

 Tensile before aging≥ 13.5mpa

  Elongation(%) ≥ 150%

Outer O.D

6.5±0.2mm

Surface

Half a mist side

 Aging Period(*hrs) 100*24h*7d

Material

PVC or LSZH

 Tensile after aging(MPA)≥ 12.5

  Elongation(%) ≥ 125%

Color

Depend on your requirement

 Cold Bend(-20±2℃*4hrs)

Packing

Wooden Tray

Wooden Dimension

370*160*240*55mm

Packing Length

Standard 305± 1.5m
