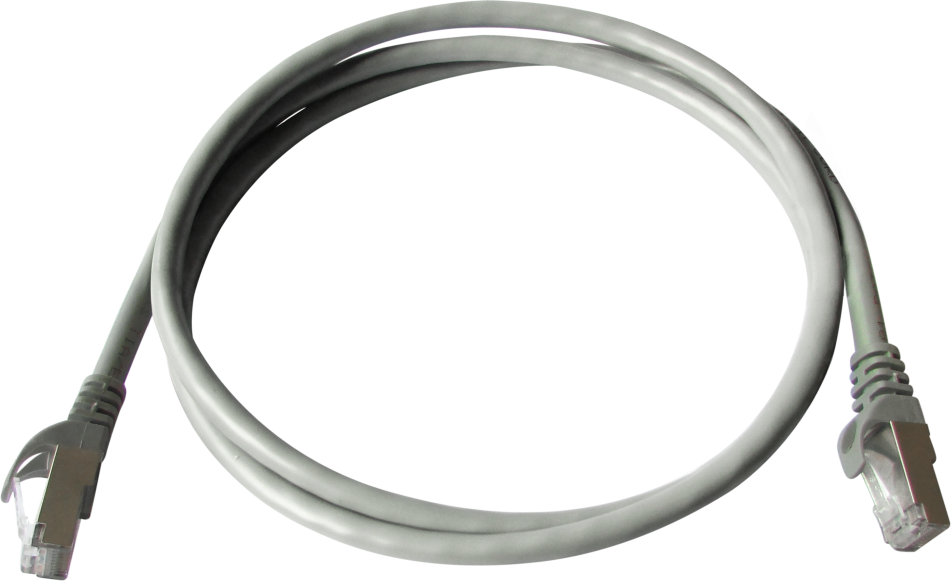

F/UTP 4Pairs Cat6 Patch Cord

CreateDate:2016-10-27  Hits:
    • LASUN
    • ISO9001
    • UL
    • F/UTP
    • CAT6


Product Description: F/UTP Cat6 Patch Cord
Rate Temperature: 60,75,90
Reference Standard: UL444,UL1581,UL1666
Flame Test: CM,CMR
Installation Temperature: -30~+50


Application:
100 Base-TX
100 Base-T
100VG-AnyLAN
1000 Base-T(Gigabit Ethernet)
1000 Base-TX

PRODUCT & SPEC.

 Cat6 Patch Cord



INDESIDE

4 Pair

Structure

Construction

F/UTP

Conductor Dimension

Stranded 7/0.16

Conductor Material

Stranded  Bare Copper

Insulation

Insulation Material

HDPE

Insulation Dimension

  0.87±0.02mm

Number Color
 ( Ring or Strip Making)

1.blue/blue&white
2.Orange /Orange &white
3.green/green&white
4.Brown/Brown&white.

Cross Section Electrical Characteristics
(20°C)

Test Item :
1. Conductor D.C. Resistance

Cross Filer

YES

Units: /100m

Description

2.Shield Connector

Cat6 RJ45 Long body Plug

3.Strain Relief Boot

Molded PVC Matching Jacket color

Physical Characteristics

  Unaged

Elongation

Tensil strength

Shield

Individual Shield Material

NO

  Insulation

>300%

>16.8KPa

Outer Shield Material

YES ( AL Foil)

    Jacket

>100%

>14.1KPa

Sheath

Outer Jacket Material

PE

Aged

100

48 Hrs

Ripcord

Yes

  Insulation

>75% Unaged

>75% Unaged

Thickness

0.6±0.05mm

    Jacket

>50% Unaged

>75% Unaged

Outer O.D

6.2±0.20mm



Surface

Clean,Frap,Satiation

Packing

Packing Length

As customer request

PE bag

Based on patch cord length

Carton Dimension

44*26*31cm
